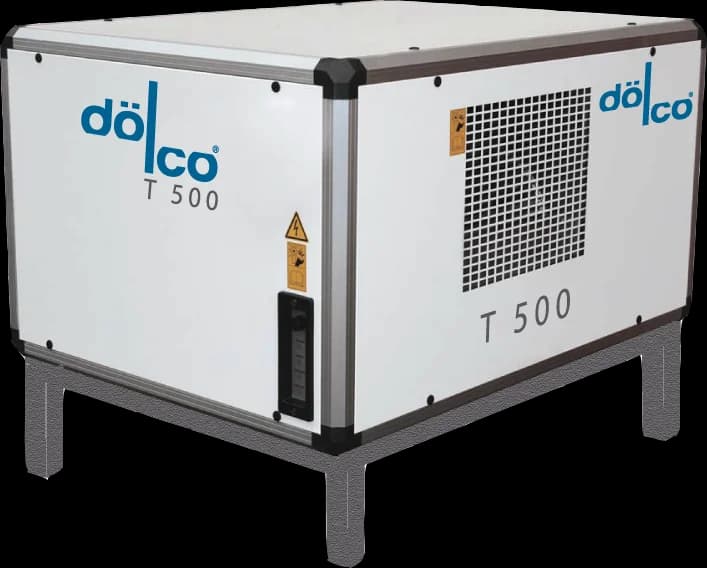

T 500 — Large industrial unit
🔍 vergrößern

Stationary Dehumidification Systems

SKU 10639

T 500 — Large industrial unit

Three-phase large unit — 520 l/24h, compact setup

The DÖLCO T 500 industrial dehumidifier is a professional device for commercial and industrial spaces. Designed for difficult conditions with 4,600 m³/h air circulation and integrated hot gas defrosting. Three-phase connection (400 V) and compact design for installation in halls and industrial plants. Connectable to DÖLCO ITR II dew point control. Optional external condenser available.

IndustryLarge unit400 V

At a glance

What makes the T 500 — Large industrial unit stand out

520l/24h

Dehumidification capacity

At 32 °C and 90 % relative humidity

4.600m³/h

Air circulation

Very powerful radial fan

400V

Three-phase

High performance with stable power consumption

IP21

Protection class

Optional as IP44

Product features

Everything to support professional use

✓Very robust steel housing
✓Hot gas defrosting
✓Safety defrosting
✓Polyurethane air filter (washable)
✓Very powerful radial fan
✓Mechanical humidistat
✓Connection for DÖLCO ITR II dew point control
✓Fixed condensate drain (3/4" F)
✓Very high dehumidification capacity (520 l/24h)
✓Very high air circulation (4,600 m³/h)
✓Three-phase connection (400 V)
✓External condenser optional

Where the T 500 — Large industrial unit is used

Areas of application

1Waterworks and water supply facilities
2Energy supply and technical control centers
3Warehouses, archives and magazines
4Industrial process rooms
5Food industry and cold storage
6Building drying in large rooms
7Tunnel and shaft construction

Technical data

Specifications

Device typeT 500
Max. room size4,600 m³ at 0 Pa
Operating range (optimal)45 – 99 % RH
Temperature range-0.5 to 40 °C
Air circulation4,600 m³/h
Max. dehumidification capacity520 l/24h (32 °C / 90 % RH)
Operating current17.9 A
Humidistatyes
Protection classIP21 (optional IP44)
Automatic defrostthermally controlled demand defrosting
Noise level (3 m)65 dB(A)
Supply voltage400 V / 3N~
Frequency50 Hz
Power normal operation5,700 W
Safety defrosting add.4,000 W
RefrigerantR 407c
Weight165 kg
Dimensions (L × W × H)900 × 1,180 × 920 mm
